Products PUNCH FORMER
Detail
● Adjustment design function user can adjust the horizontal and center.
● ER collet specifications please refer order no. 37066~37070.

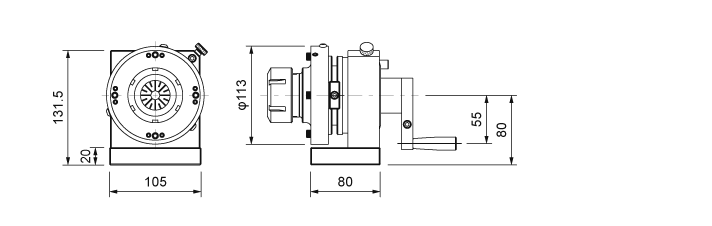

■ Specifications:
● Swivel center high 80mm
● Indexing Div: 24(Every 15°)±10 seconds
● ER32 collet clamping range: φ2~20mm
● ER40 collet clamping range: φ3~26mm
● ER50 collet clamping range: φ10~34mm
● The body max diameter pass through: φ16mm
● Weight:10.5kg
MCL-650-ER32 MCL-650-ER40 MCL-650-ER50 Michilin
