31069 PUNCH FORMER (CENTERING TYPE)

Item Model：PF
Download
Detail
● Both sides of live center to clamping punch to achieve concentricity and stabilize the processing also achieve higher accuracy.

■ Specifications:
● Swivel center high: 80mm
● Indexing Div: 24(Every 15°)±10"
● Parallelism: 0.002/100mm
● Roundness: 0.002/100mm

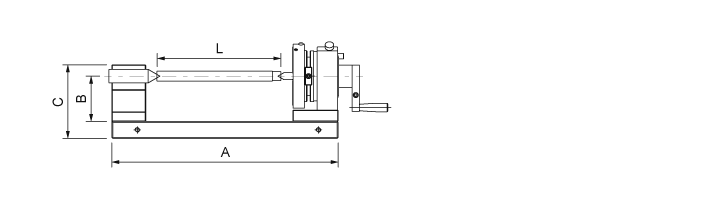

Order No. Model A B C L Weight (kg)
31069-30 PF300 300 80 130 0 ~ 120  18
31069-40 PF400 400 80 130 0 ~ 220 21
31069-50 PF500 500 80 130 0 ~ 320 24
31069-60 PF600 600 80 130 0 ~ 420 27.5
