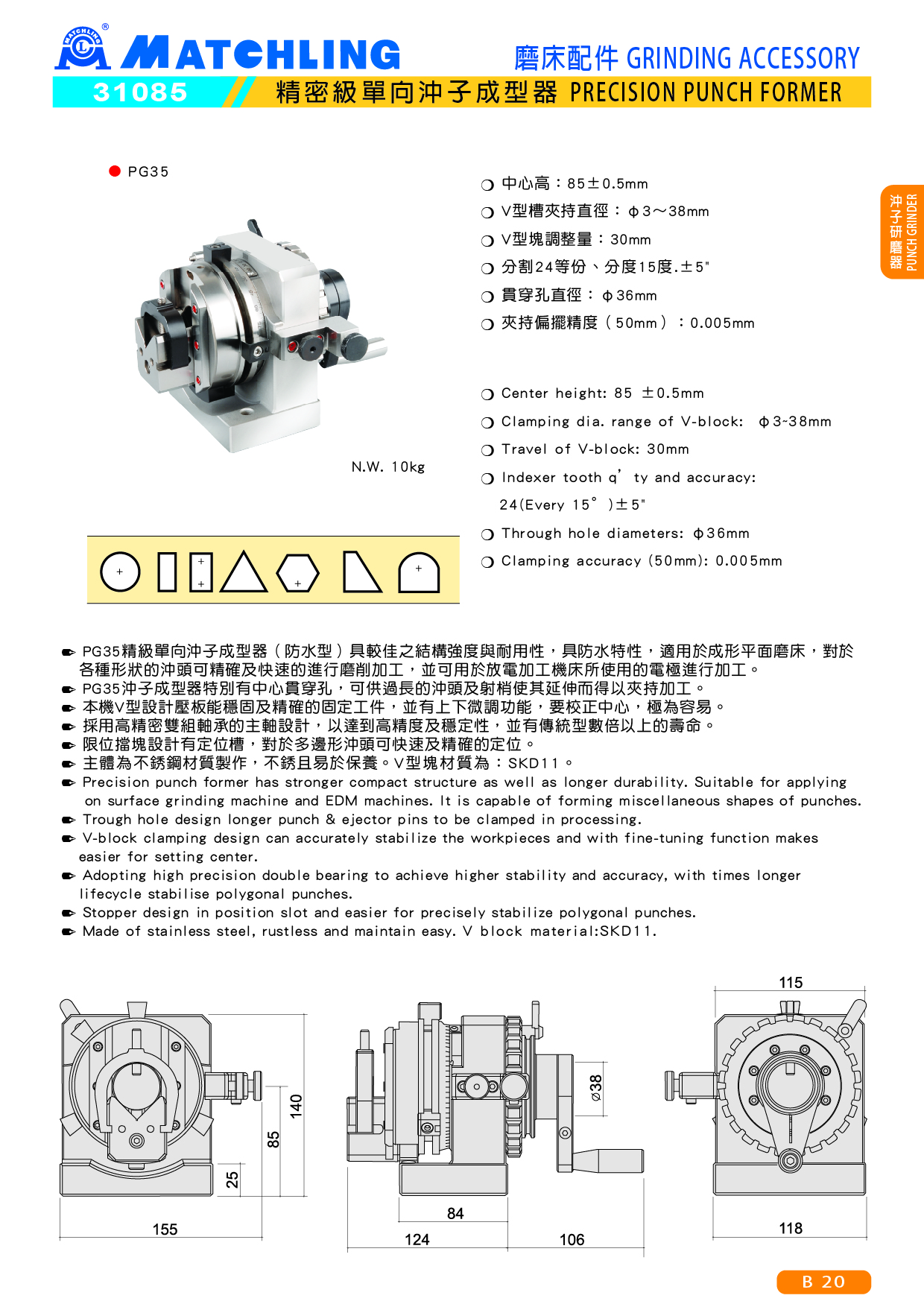

● Trough hole design longer punch & ejector pins to be clamped in processing.
● V-block clamping design can accurately stabilize the workpieces and with fine-tuning function makes easier for setting center.
● Adopting high precision double bearing to achieve higher stability and accuracy, with times longer lifecycle stabilise polygonal punches.
● Stopper design in position slot and easier for precisely stabilize polygonal punches.
● Made of stainless steel, rustless and maintain easy.
● V block is not made of stainless steel.
■ Specifications:
● Center height: 85 ±0.5mm
● Clamping dia. range of V-block: φ3~38mm
● Travel of V-block: 30mm
● Indexer tooth q’ty and accuracy: 24(Every 15°)±5"
● Through hole diameters: φ36mm
● Clamping accuracy (50mm): 0.005mm
● Weight：10KG
