● 3-jaw chuck provide rapid clamping and it suitable for mass production workpiece with round shaped can precisely and rapidly clamped.
● Jaw attachment can clamp workpiece with larger diameters.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● 3-Jaw is not made of stainless steel.
■ Specifications:

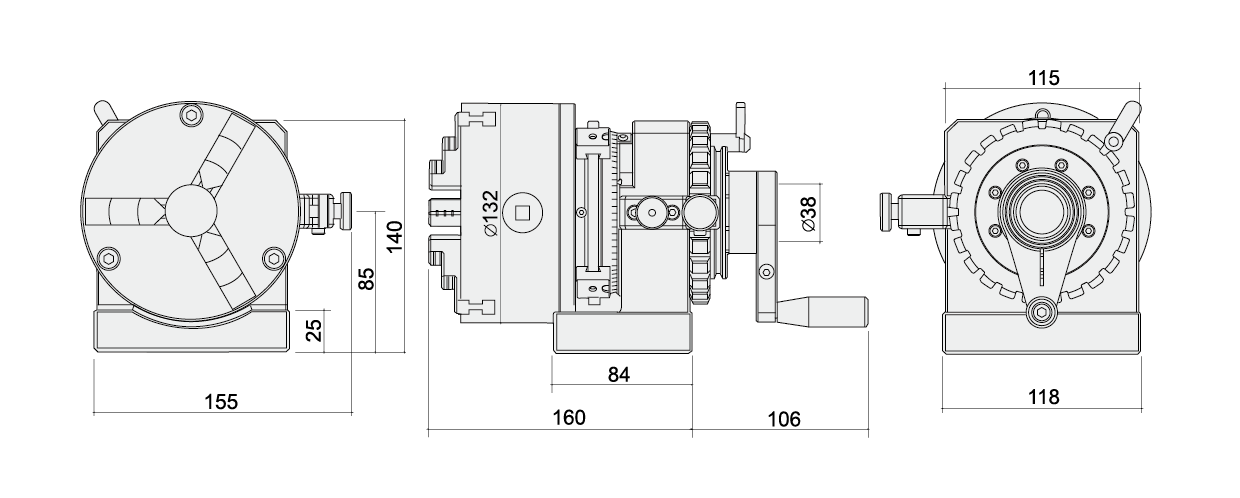

● Center height: 85 ±0.5mm
● Indexer tooth q’ty and accuracy: 24、15φ±5”
● Through hole diameters: φ32mm
● Hole dia. of 3-jaw check: φ32mm
● Min. clamping range: Outer Dia. φ3mm / Internal Dia. φ35mm
● Max. clamping range: Outer Dia. φ110mm / Internal Dia. φ110mm
● Rotational accuracy: 0.003mm
● Repeat accuracy: within 0.015mm
● Weight：14.8KG
