● With ER collets, the flexible range of collet is 1mm.
● Capable collet clamping range: Min. Ø2mm, Max. Ø34mm.
● Can rapidly clamp the workpiece and achieving higher stability during processing, no need to adjust the center accuracy.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● The model is compatible with various ER collets such as ER20, ER32, ER50 ect...
● ER Collet & ER nut are not made of stainless steel.
■ Specifications:
● Center height: 85 ±0.5mm
● Indexer tooth q’ty and accuracy: 24、15φ±5”
● Through hole diameters: φ36mm
● Repeat accuracy: within 0.003mm

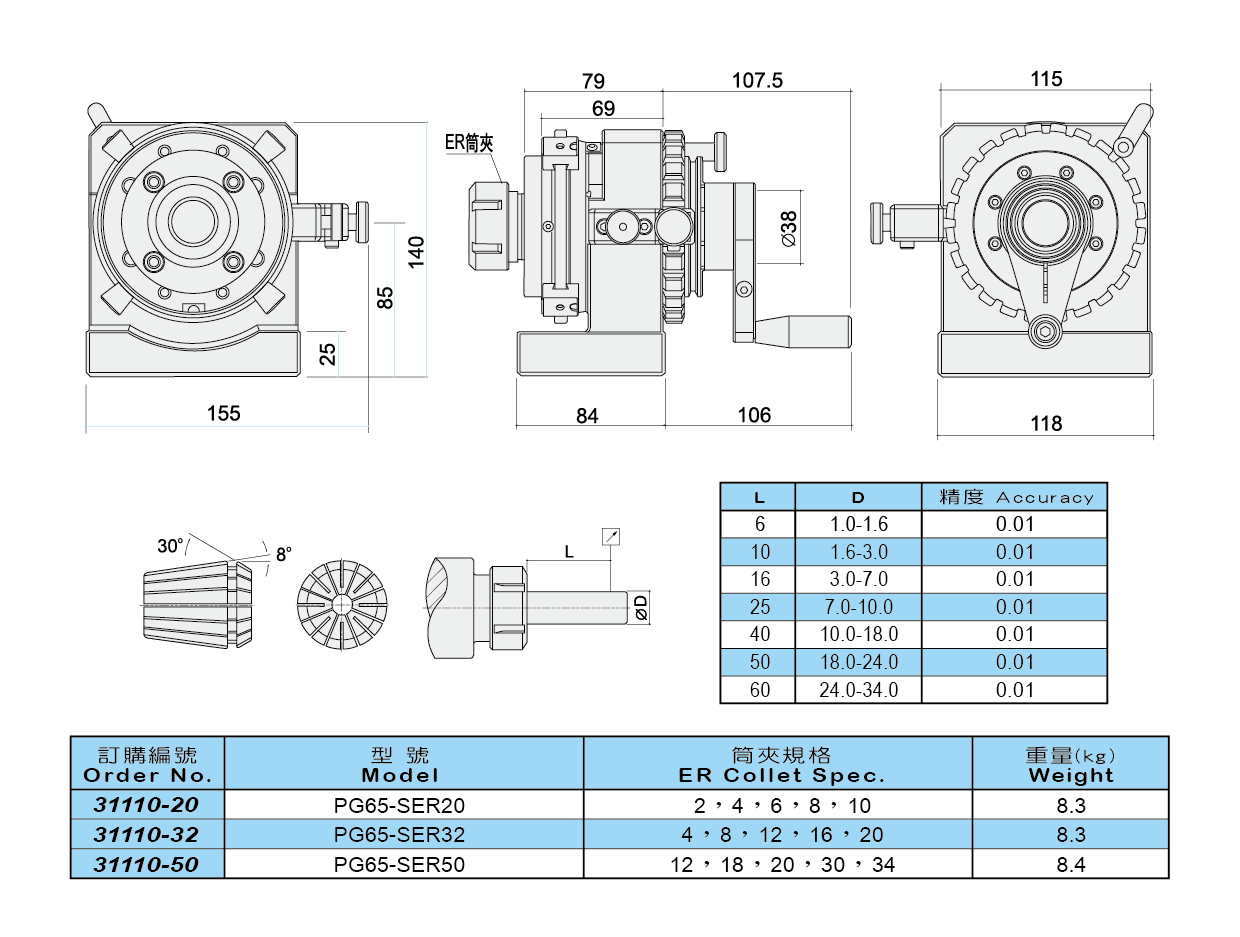

PG65-SER20 PG65-SER32 PG65-SER50
