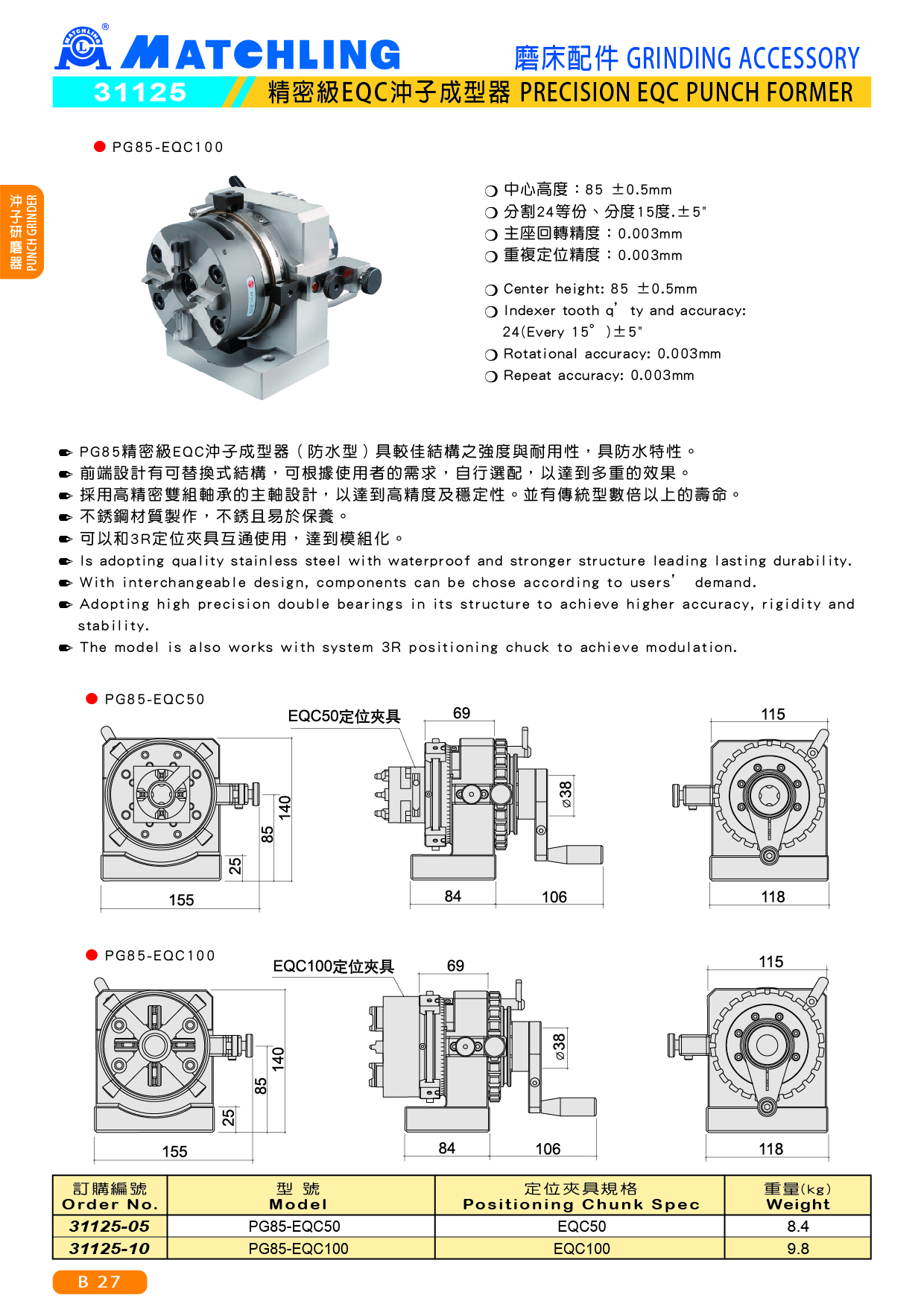

Products PUNCH FORMER

Detail
● Is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
With interchangeable design, components can be chose according to users’ demand.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
The model is also works with system 3R positioning chuck to achieve modulation.

Specifications:
● Center height: 85 ±0.5mm
● Indexer tooth q’ty and accuracy: 24(Every 15°)±5"
● Rotational accuracy: 0.003mm
● Repeat accuracy: 0.003mm

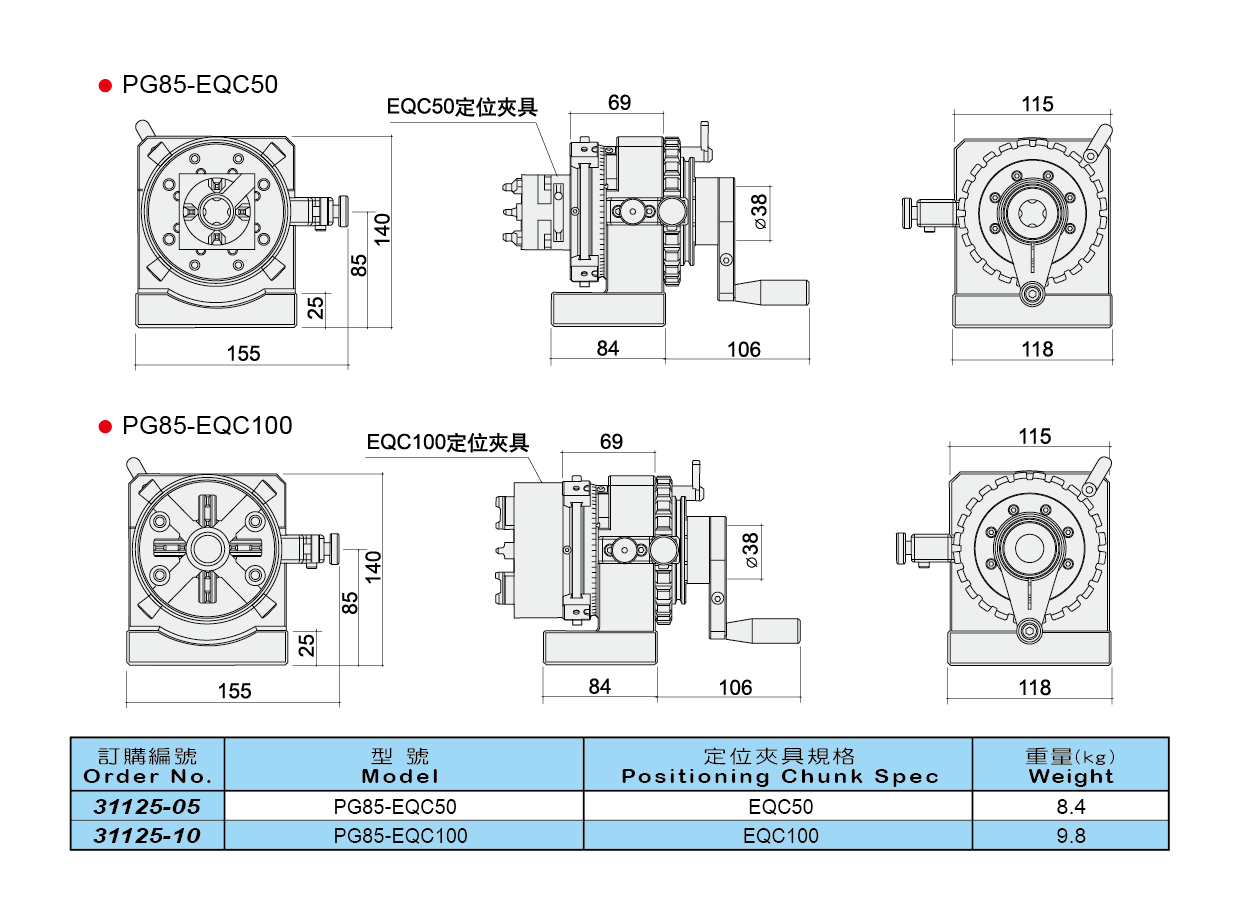

PG85-EQC50   PG85-EQC100
