35053 SUPER OPEN VISE

Item Model：VSP-___

Download

Detail

● Chip cover adopted, preventing chips falling into causing bad motion.
● Double opening than those of same grade vise. Can easy clamp longer work piece.
● Oil-free powerful mechanical boost system, which gives greater clamping and never collapsing pressure.
■ This unit had prevent lifting structure, when clamping in down direction power also acting, so the workpiece
and movable parts lift very small, furthermore, the body and solid jaw is a combination structure, it dose not tilt.

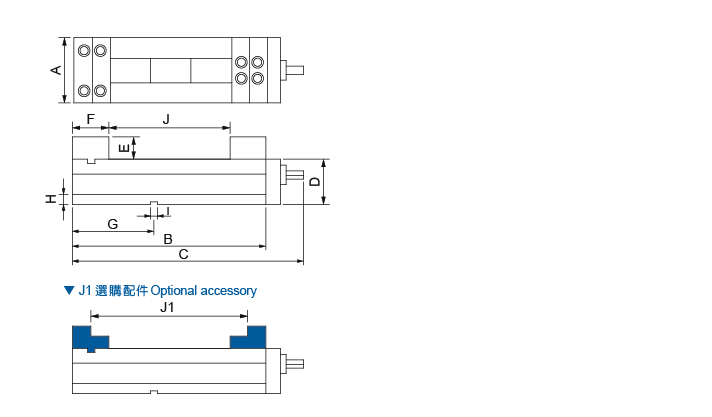

Order No.	Model	A	B	C	D	E	F	G	H	I	J	J1	Power(kgf)	Weight (kg)
35053-04	VSP-4	100	310	435	95	45	70	110	23	18	230	200	4000	30
35053-05	VSP-5	130	410	535	100	50	80	135	23	18	230	315	4000	48
35053-06	VSP-6	160	490	615	110	55	85	150	23	18	300	385	5000	62
35053-08	VSP-8	200	565	690	120	60	100	220	23	18	350	450	5000	105
