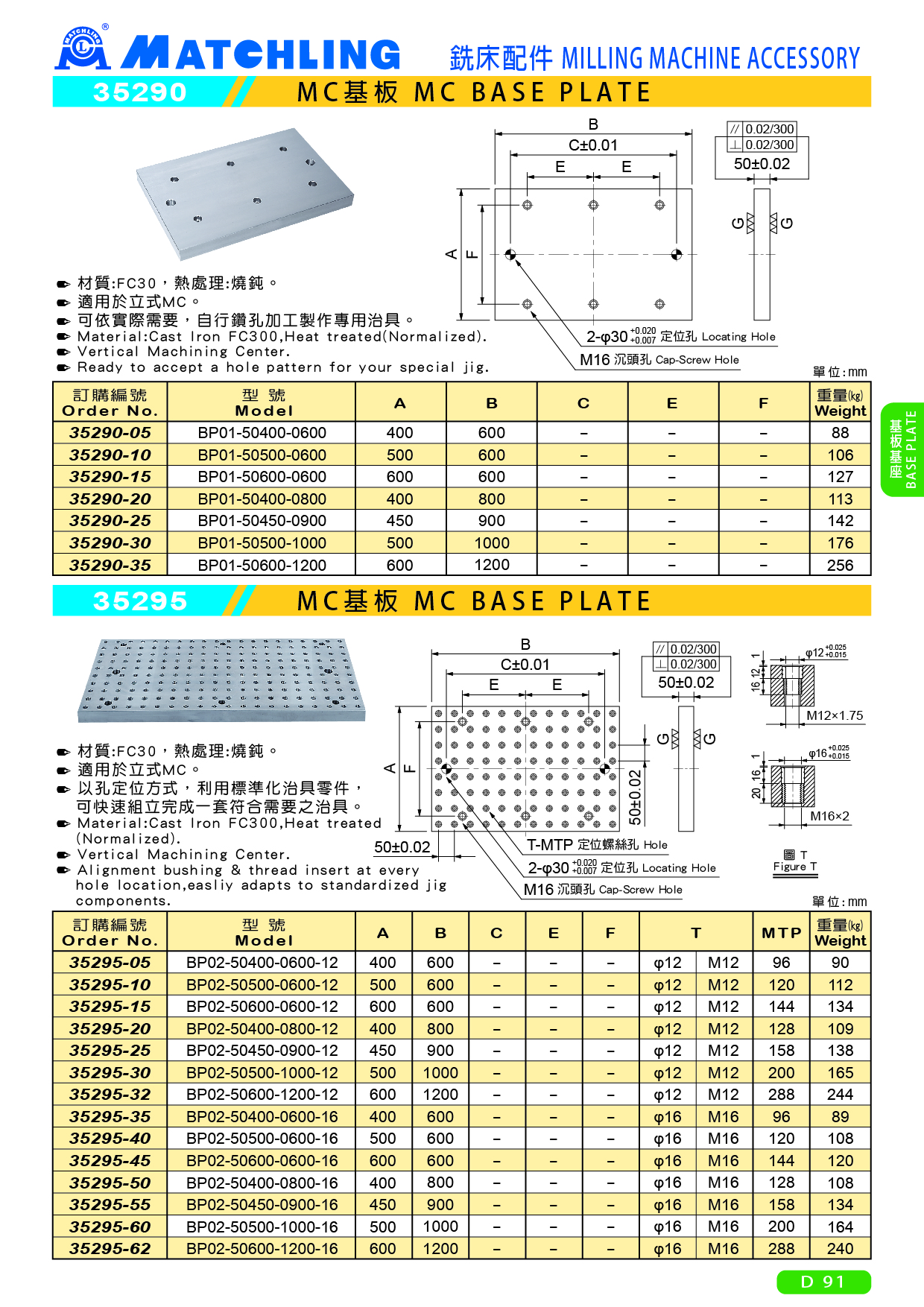

Products MC BASE PLATE / MC TOOLING COLUMN

Detail
Material:Cast Iron FC300,Heat treated(Normalized).
Vertical Machining Center.

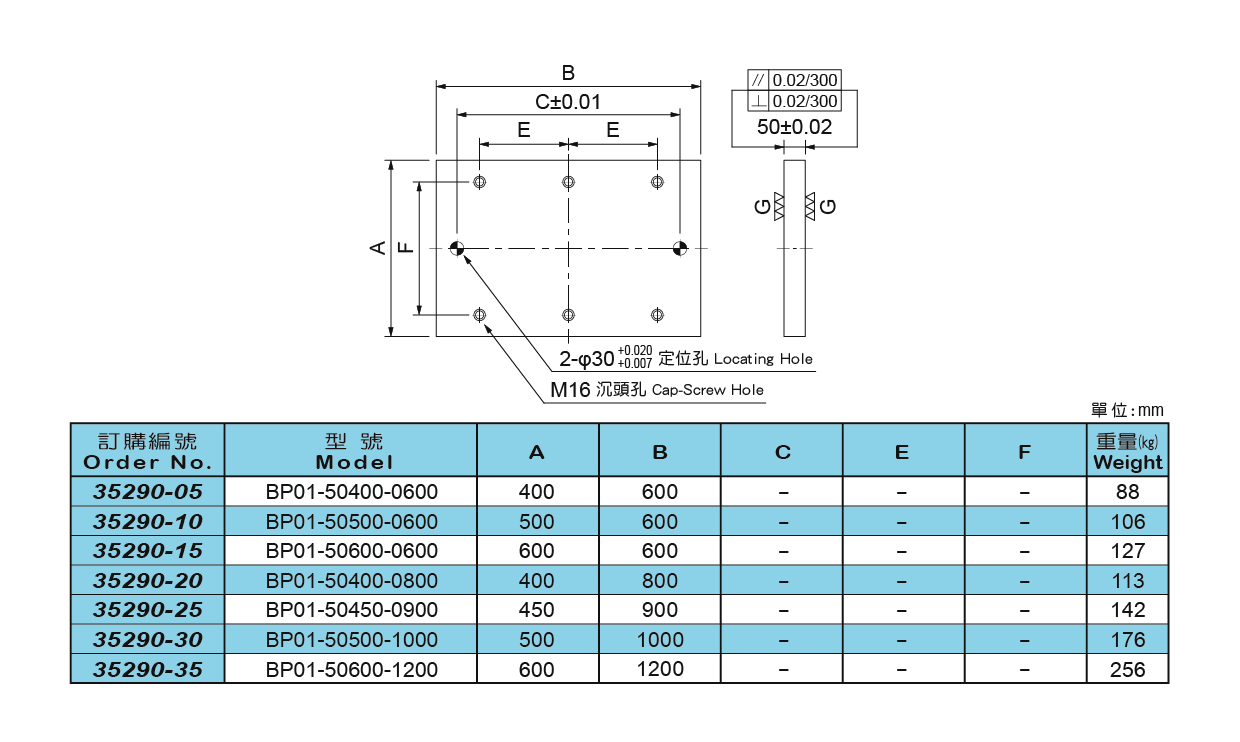

 Ready to accept a hole pattern for your special jig.


BP01-50400-0600 BP01-50500-0600 BP01-50600-0600 BP01-50400-0800 BP01-50450-0900 BP01-50500-1000 BP01-50600-1200
