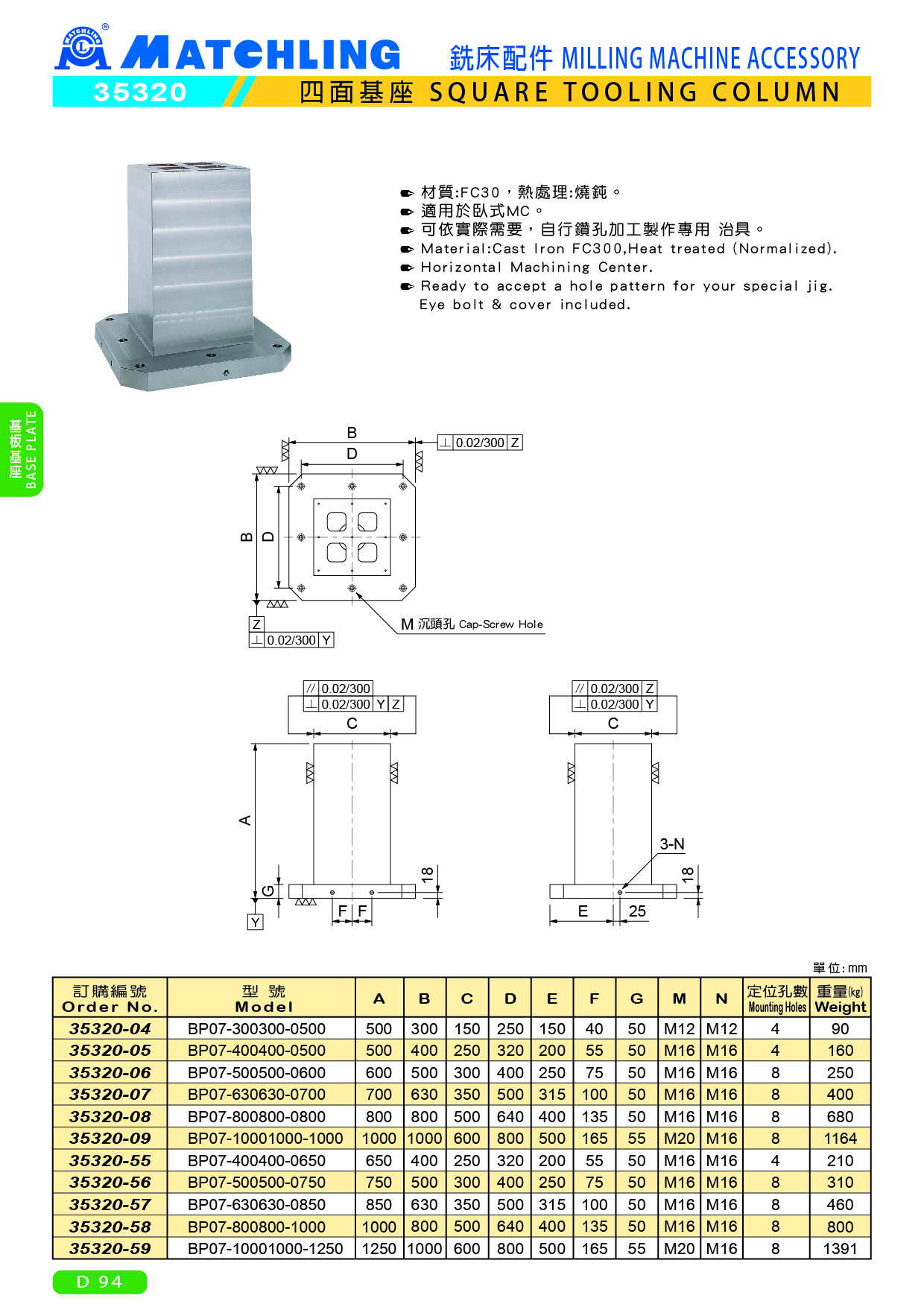

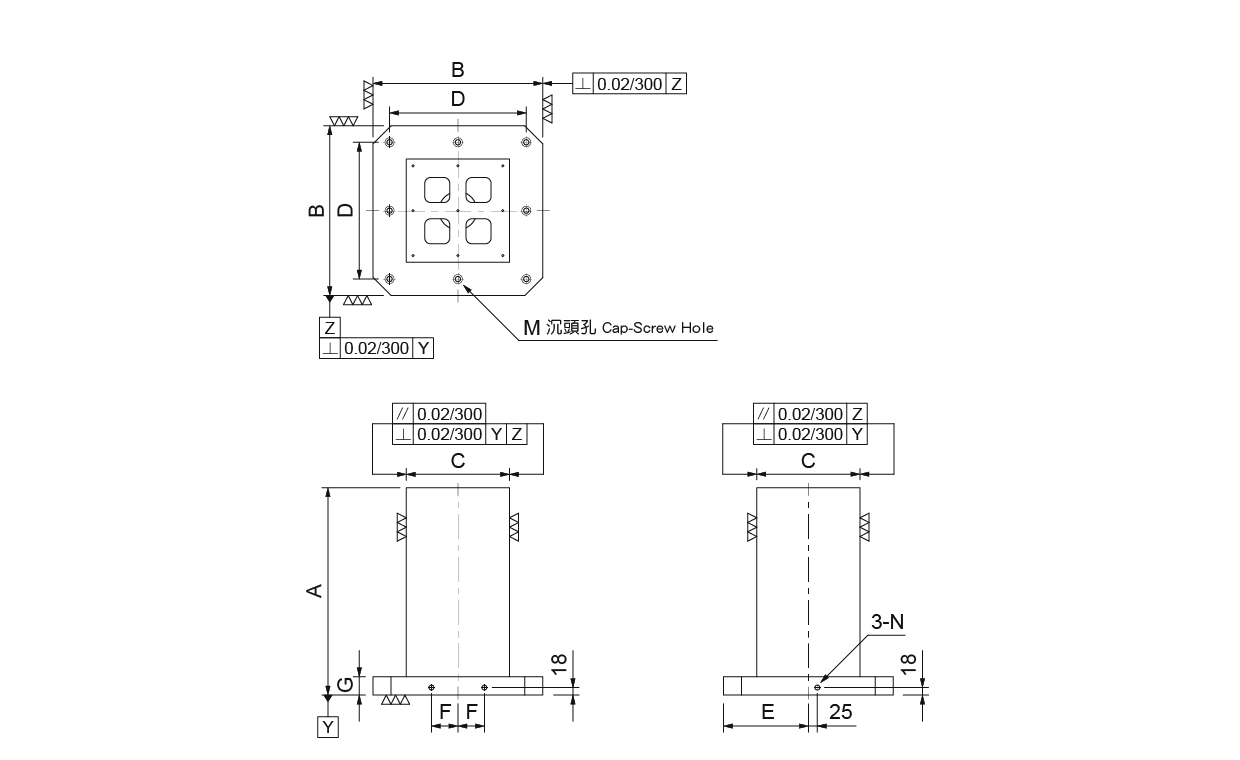

35320 SQUARE TOOLING COLUMN

Item Model：BP07-__
Download
Detail
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig. Eye bolt & cover included.

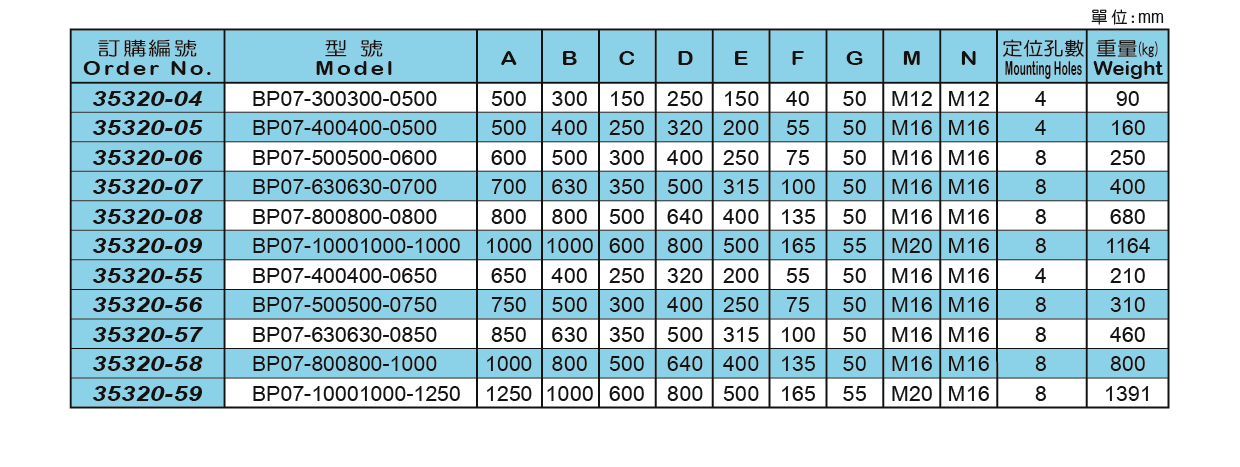

BP07-300300-0500 BP07-400400-0500 BP07-500500-0600 BP07-630630-0700 BP07-800800-0800 BP07-10001000-1000 BP07-400400-0650 BP07-500500-0750 BP07-630630-0850 BP07-800800-1000 BP07-10001000-1250
