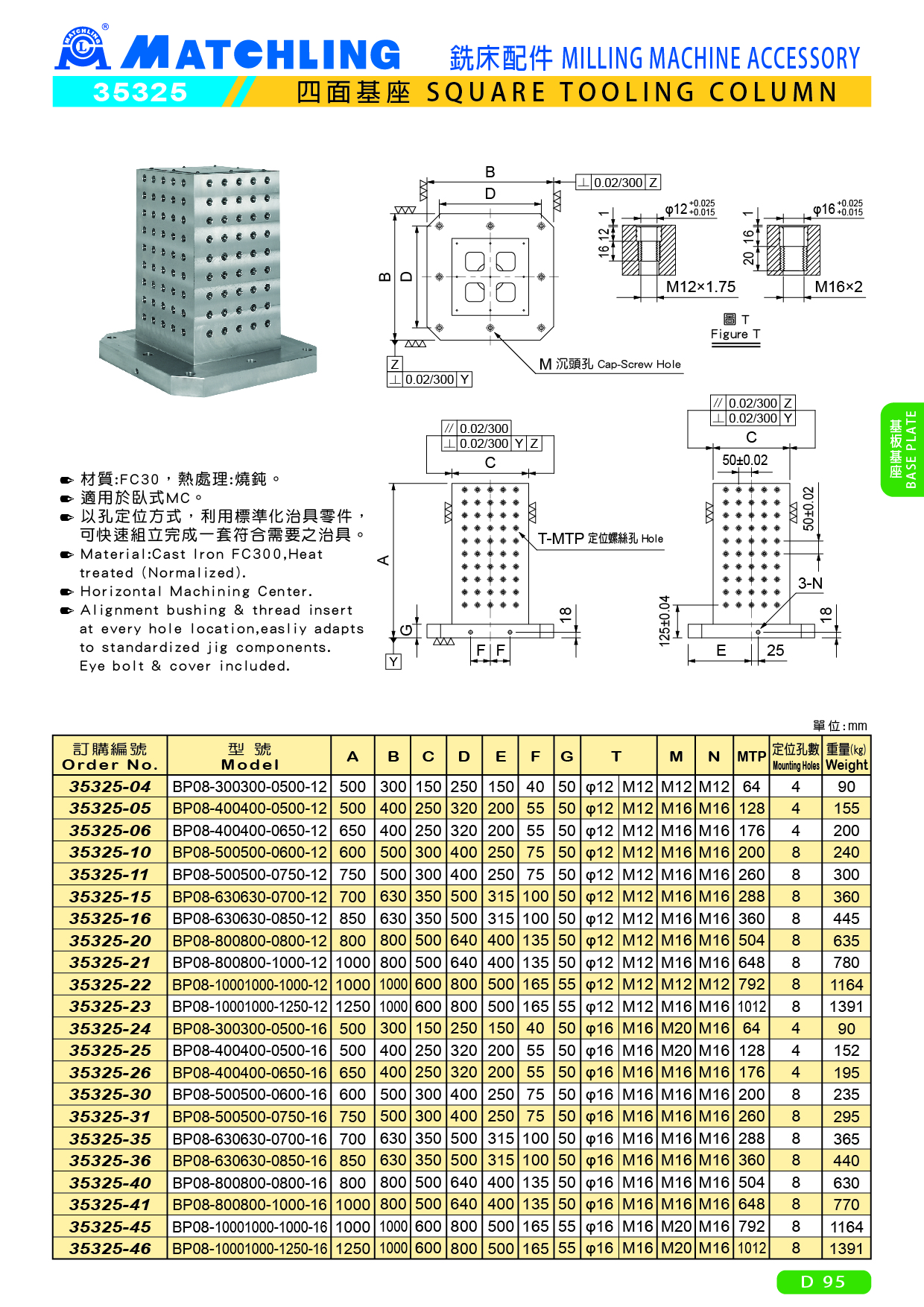

Products MC BASE PLATE / MC TOOLING COLUMN

Detail
Material:Cast Iron FC300,Heat treated (Normalized).
Horizontal Machining Center.
Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components. Eye bolt & cover included.

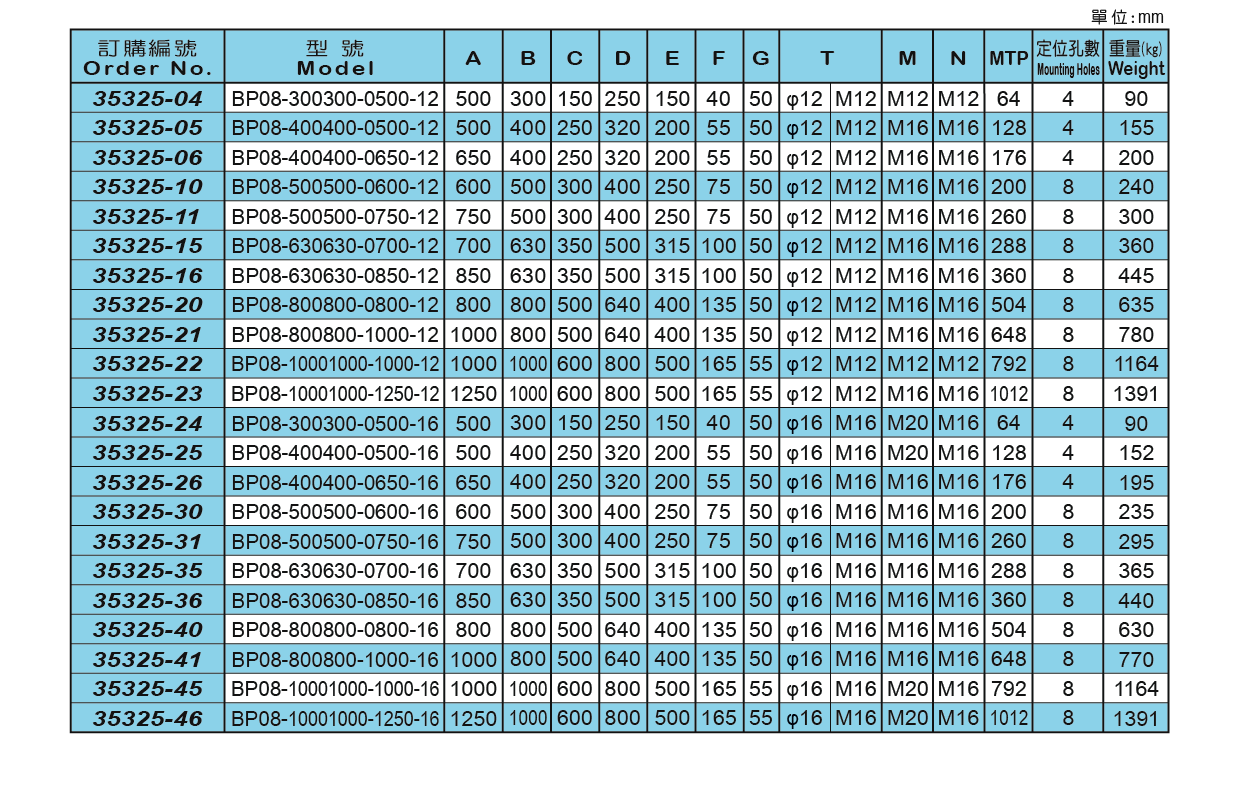

BP08-300300-0500-12 BP08-400400-0500-12 BP08-400400-0650-12 BP08-500500-0600-12 BP08-500500-0750-12 BP08-630630-0700-12 BP08-630630-0850-12 BP08-800800-0800-12 BP08-800800-1000-12 BP08-10001000-1000-12 BP08-10001000-1250-12 BP08-300300-0500-16 BP08-400400-0500-16 BP08-400400-0650-16 BP08-500500-0600-16 BP08-500500-0750-16 BP08-630630-0700-16 BP08-630630-0850-16 BP08-800800-0800-16 BP08-800800-1000-16 BP08-10001000-1000-16 BP08-10001000-1250-16
