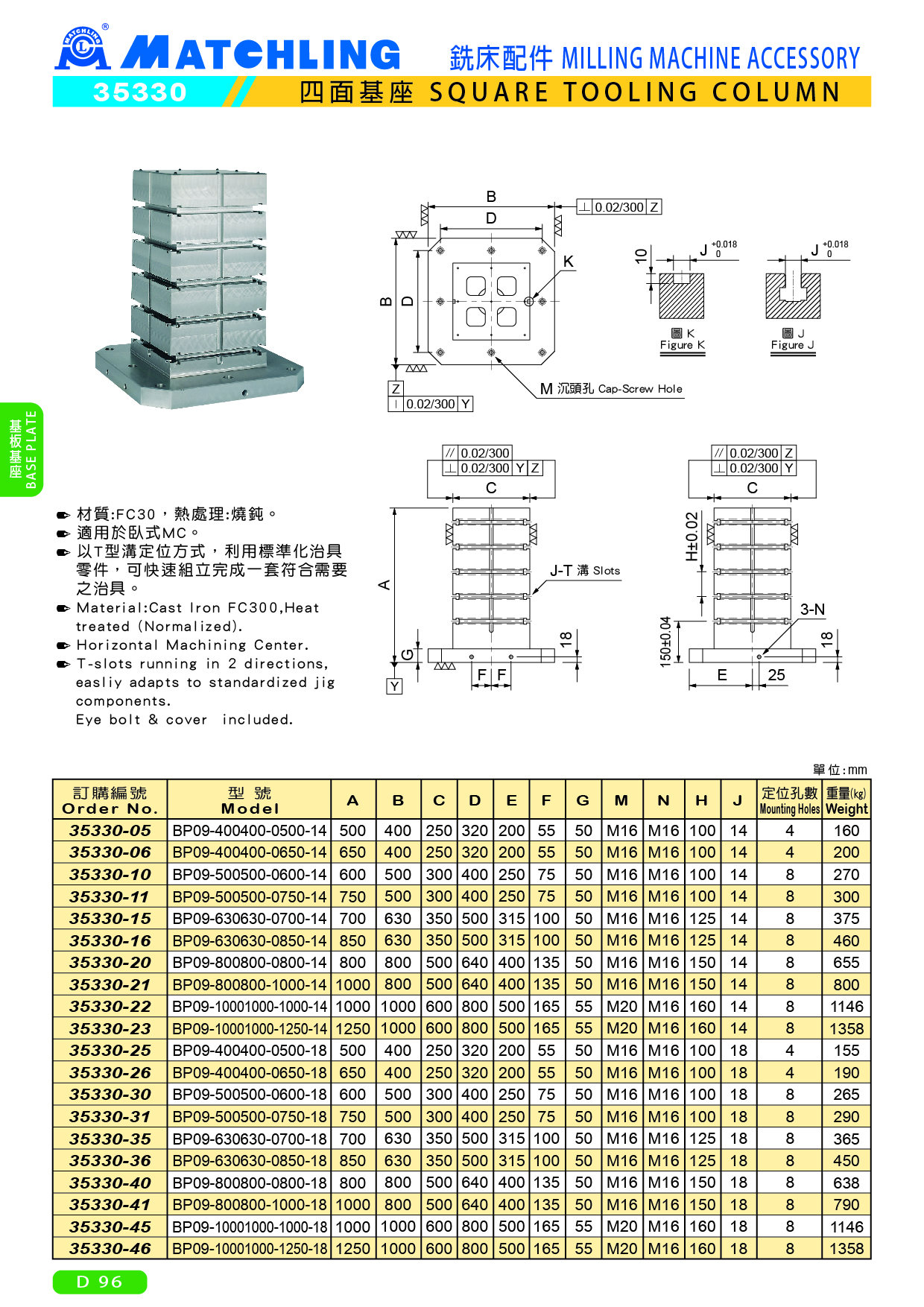

Products MC BASE PLATE / MC TOOLING COLUMN

Detail
 Material:Cast Iron FC300,Heat treated (Normalized).
 Horizontal Machining Center.

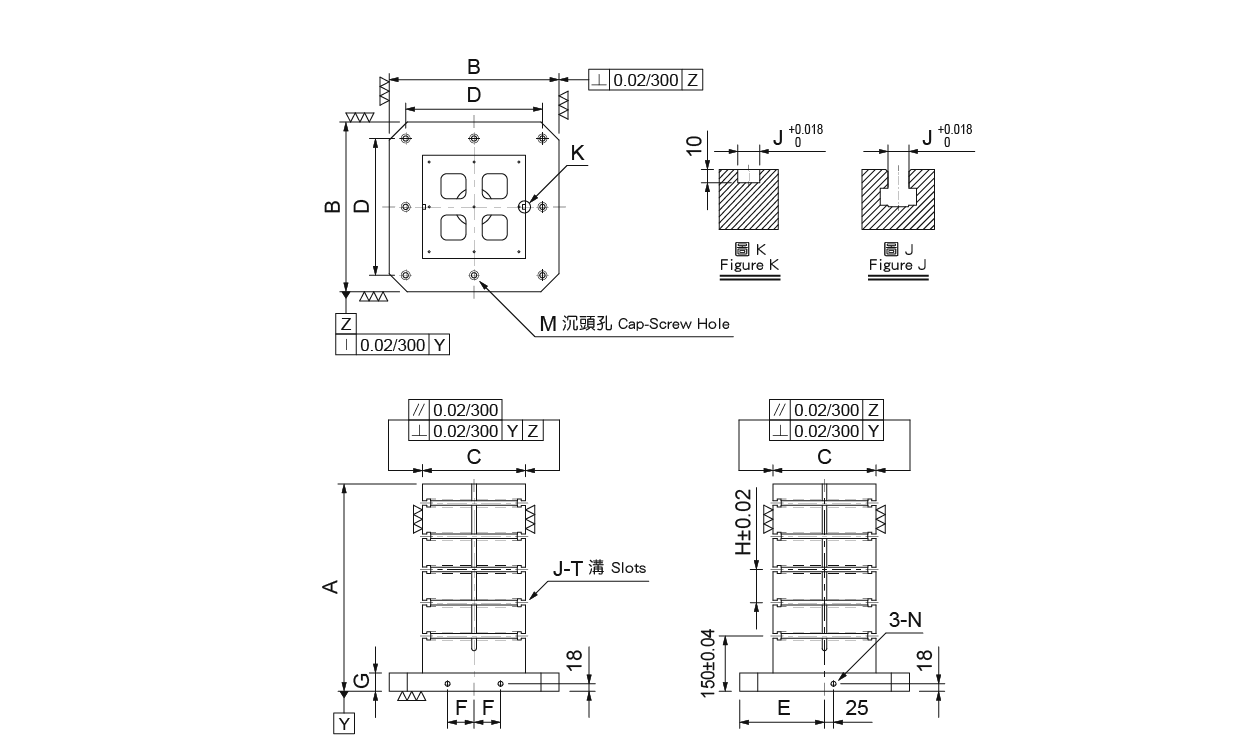

 T-slots running in 2 directions,easliy adapts to standardized jig components. Eye bolt & cover  included.

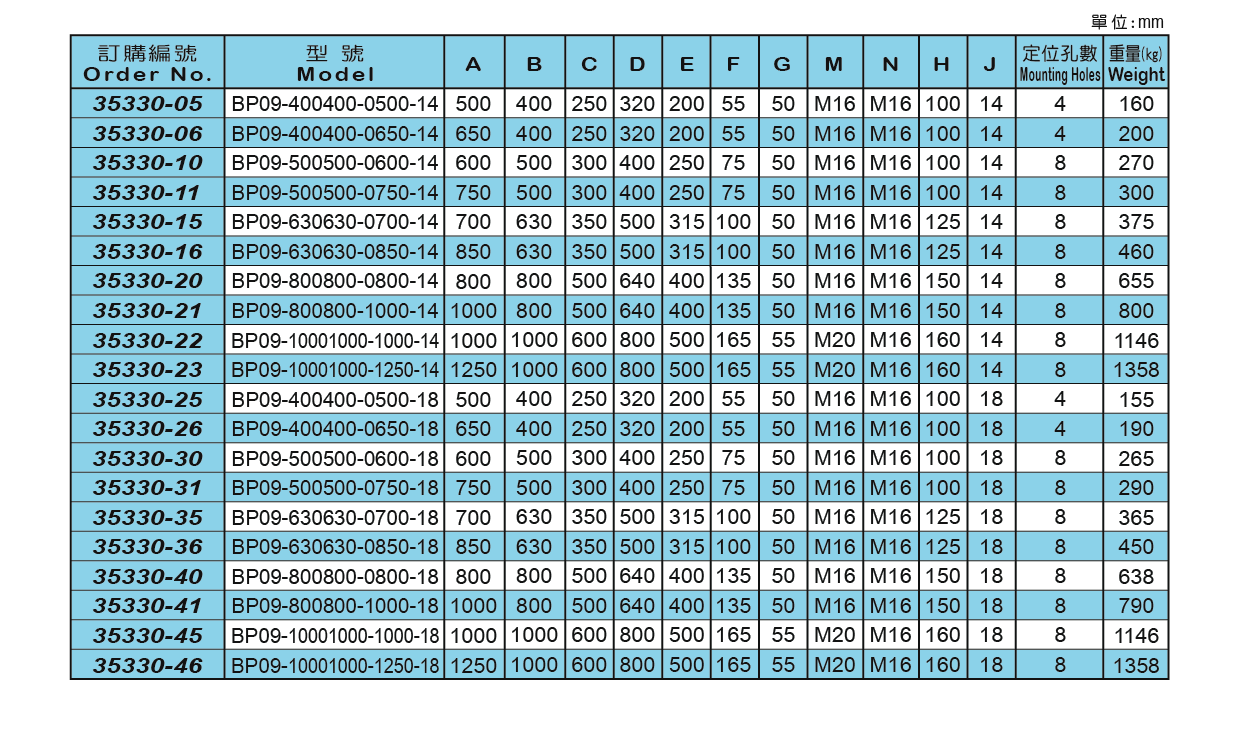

BP09-400400-0500-14 BP09-400400-0650-14 BP09-500500-0600-14 BP09-500500-0750-14 BP09-630630-0700-14 BP09-630630-0850-14 BP09-800800-0800-14 BP09-800800-1000-14 BP09-10001000-1000-14 BP09-10001000-1250-14 BP09-400400-0500-18 BP09-400400-0650-18 BP09-500500-0600-18 BP09-500500-0750-18 BP09-630630-0700-18 BP09-630630-0850-18 BP09-800800-0800-18 BP09-800800-1000-18 BP09-10001000-1000-18 BP09-10001000-1250-18
