Products MC BASE PLATE / MC TOOLING COLUMN

Detail
Material:S45C,Heat treated (Normalized).
Multipurpose subplate.
Ready to accept a hole pattern for your special jig.

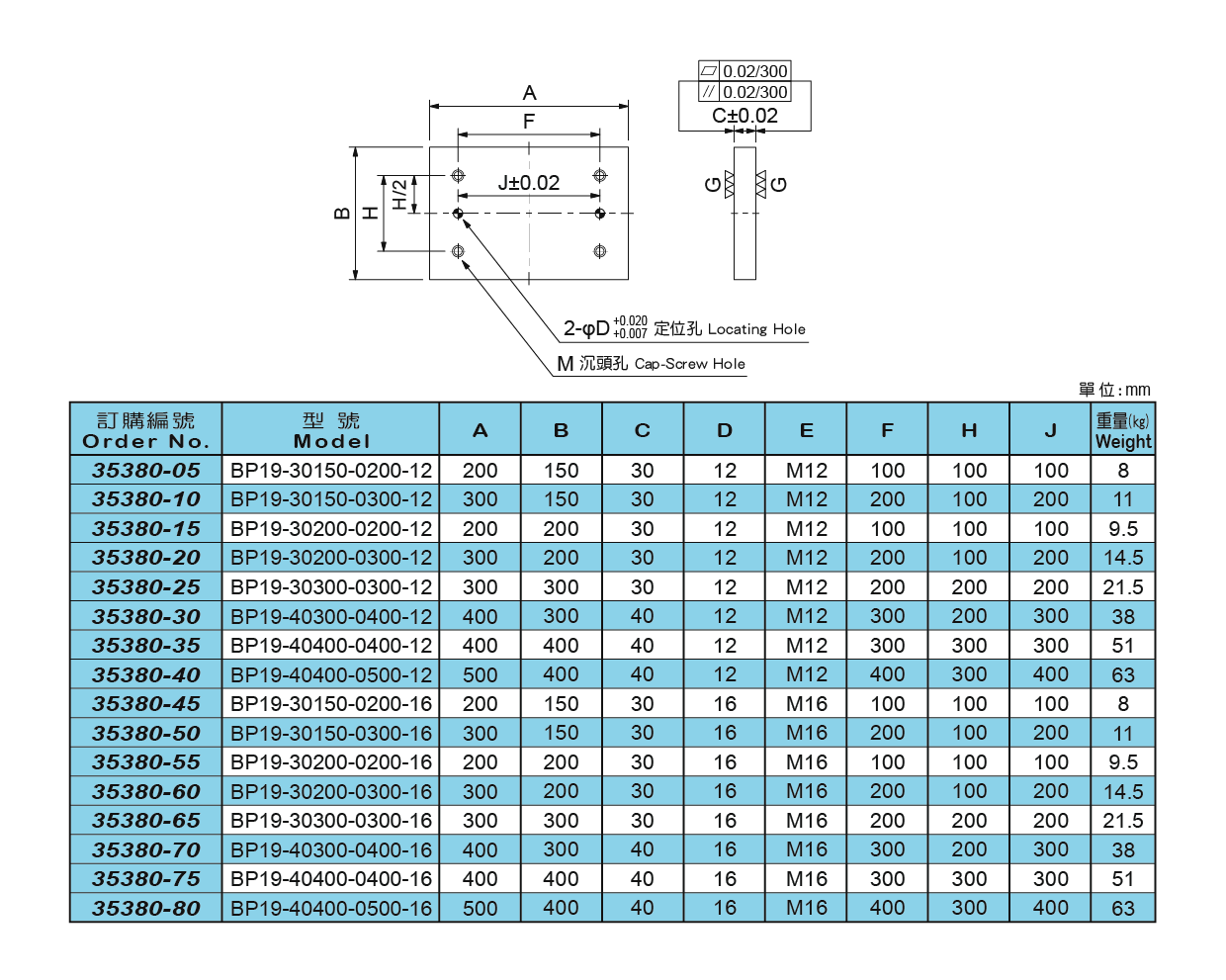

BP19-30150-0200-12 BP19-30150-0300-12 BP19-30200-0200-12 BP19-30200-0300-12 BP19-30300-0300-12 BP19-40300-0400-12 BP19-40400-0400-12 BP19-40400-0500-12 BP19-30150-0200-16 BP19-30150-0300-16 BP19-30200-0200-16 BP19-30200-0300-16 BP19-30300-0300-16 BP19-40300-0400-16 BP19-40400-0400-16 BP19-40400-0500-16
