Products MC BASE PLATE / MC TOOLING COLUMN

Detail
Material:Cast Iron FC300,Heat treated (Normalized).
Horizontal Machining Center.
Alignment bushing & thread insert at every holelocation ,easliy adapts to standardized jig components.

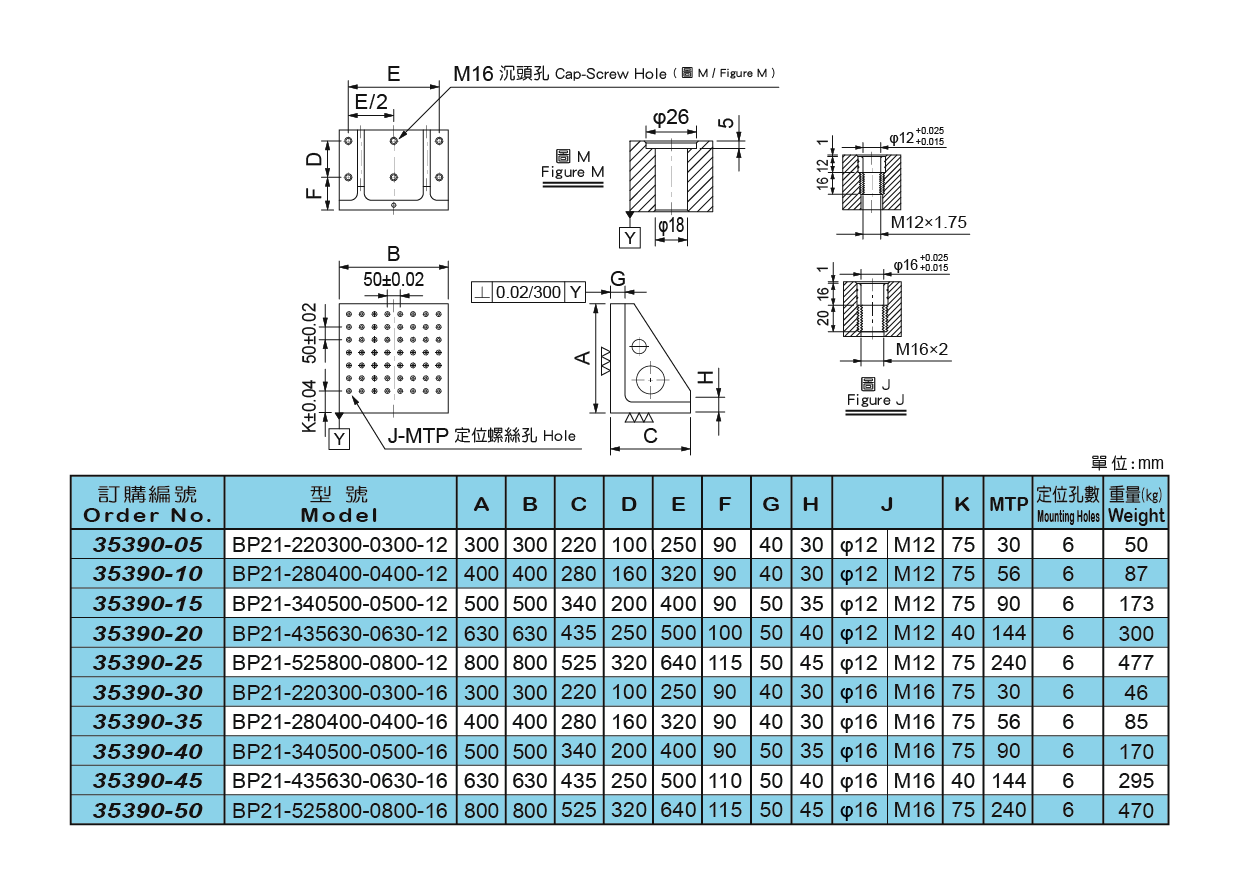

BP21-220300-0300-12 BP21-280400-0400-12 BP21-340500-0500-12 BP21-435630-0630-12 BP21-525800-0800-12 BP21-220300-0300-16 BP21-280400-0400-16 BP21-340500-0500-16 BP21-435630-0630-16 BP21-525800-0800-16
