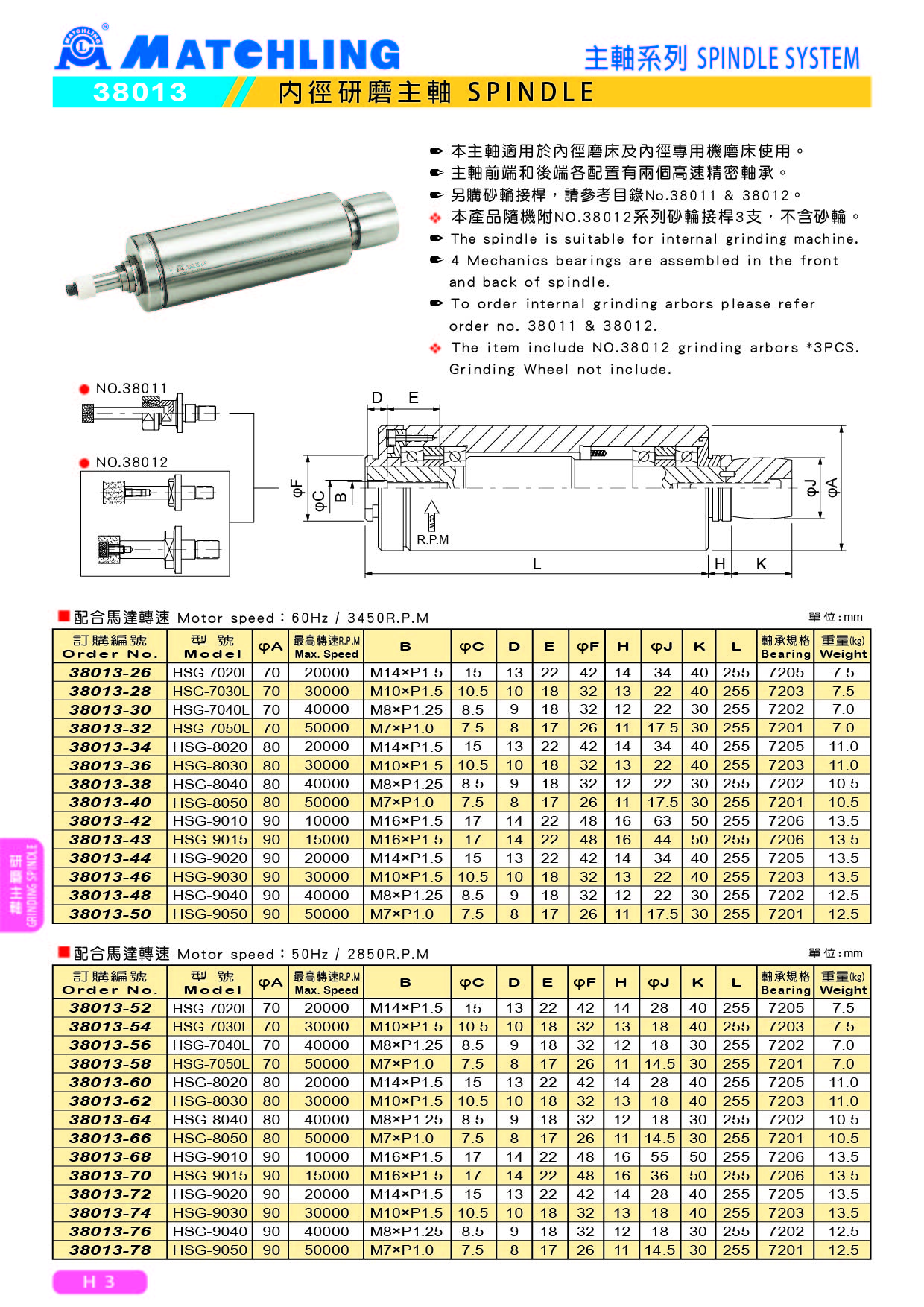

38013 SPINDLE

Item Model：HSG-__
Download
Detail
● The spindle is suitable for internal grinding machine.
● 4 Mechanics bearings are assembled in the front and back of spindle.
● To order internal grinding arbors please refer order no. 38011 & 38012.
● The item include NO.38012 grinding arbors *3.

** Motor speed：60Hz / 3450R.P.M
Order No. Model φ A Max. Speed R.P.M B φ C D E φ F H φ J K L Bearing Weight (kg)
38013-26 HSG-7020L 70 20000 M14*P1.5 15 13 22 42 14 34 40 255 7205 7.5
38013-28 HSG-7030L 70 30000 M10*P1.5 10.5 10 18 32 13 22 40 255 7203 7.5
38013-30 HSG-7040L 70 40000 M8*P1.25 8.5 9 18 32 12 22 30 255 7202 7
38013-32 HSG-7050L 70 50000 M7*P1.0 7.5 8 17 26 11 17.5 30 255 7201 7
38013-34 HSG-8020 80 20000 M14*P1.5 15 13 22 42 14 34 40 255 7205 11
38013-36 HSG-8030 80 30000 M10*P1.5 10.5 10 18 32 13 22 40 255 7203 11
38013-38 HSG-8040 80 40000 M8*P1.25 8.5 9 18 32 12 22 30 255 7202 10.5
38013-40 HSG-8050 80 50000 M7*P1.0 7.5 8 17 26 11 17.5 30 255 7201 10.5
38013-42 HSG-9010 90 10000 M16*P1.5 17 14 22 48 16 63 50 255 7206 13.5
38013-43 HSG-9015 90 15000 M16*P1.5 17 14 22 48 16 44 50 255 7206 13.5
38013-44 HSG-9020 90 20000 M14*P1.5 15 13 22 42 14 34 40 255 7205 13.5
38013-46 HSG-9030 90 30000 M10*P1.5 10.5 10 18 32 13 22 40 255 7203 13.5
38013-48 HSG-9040 90 40000 M8*P1.25 8.5 9 18 32 12 22 30 255 7202 12.5
38013-50 HSG-9050 90 50000 M7*P1.0 7.5 8 17 26 11 17.5 30 255 7201 12.5

** Motor speed：50Hz / 2850R.P.M
Order No. Model φ A Max. Speed R.P.M B φ C D E φ F H φ J K L Bearing Weight (kg)
38013-52 HSG-7020L 70 20000 M14*P1.5 15 13 22 42 14 28 40 255 7205 7.5
38013-54 HSG-7030L 70 30000 M10*P1.5 10.5 10 18 32 13 18 40 255 7203 7.5
38013-56 HSG-7040L 70 40000 M8*P1.25 8.5 9 18 32 12 18 30 255 7202 7
38013-58 HSG-7050L 70 50000 M7*P1.0 7.5 8 17 26 11 14.5 30 255 7201 7
38013-60 HSG-8020 80 20000 M14*P1.5 15 13 22 42 14 28 40 255 7205 11
38013-62 HSG-8030 80 30000 M10*P1.5 10.5 10 18 32 13 18 40 255 7203 11
38013-64 HSG-8040 80 40000 M8*P1.25 8.5 9 18 32 12 18 30 255 7202 10.5
38013-66 HSG-8050 80 50000 M7*P1.0 7.5 8 17 26 11 14.5 30 255 7201 10.5
38013-68 HSG-9010 90 10000 M16*P1.5 17 14 22 48 16 55 50 255 7206 13.5
38013-70 HSG-9015 90 15000 M16*P1.5 17 14 22 48 16 36 50 255 7206 13.5
38013-72 HSG-9020 90 20000 M14*P1.5 15 13 22 42 14 28 40 255 7205 13.5
38013-74 HSG-9030 90 30000 M10*P1.5 10.5 10 18 32 13 18 40 255 7203 13.5
38013-76 HSG-9040 90 40000 M8*P1.25 8.5 9 18 32 12 18 30 255 7202 12.5
38013-78 HSG-9050 90 50000 M7*P1.0 7.5 8 17 26 11 14.5 30 255 7201 12.5
